Fast and smooth response to pressure change Cavity: 08 Flow: 22 L/min Pressure: 250 bar Description: A screw-in, cartridge-style, direct-acting, poppet-type hydraulic relief valve designed for low flow rate hydraulic circuits requiring low internal leakage.

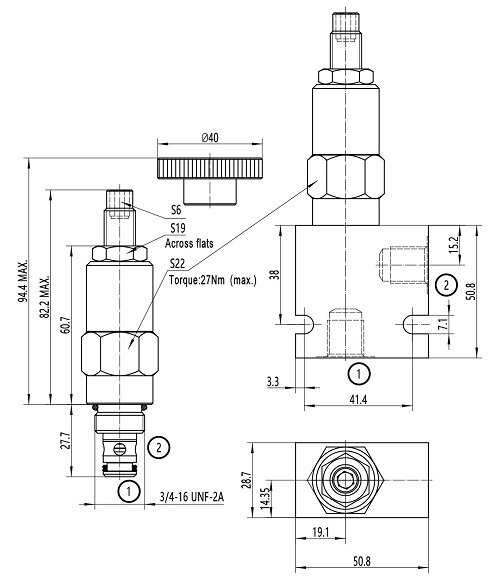

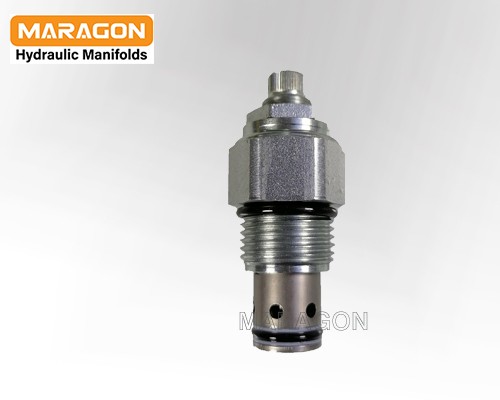

RV08-P0, Cartridge Relief ValveCETOP, Direct-Acting, Relief Valve (Poppet Type): |
Function: (Cartridge Relief Valve RV08-P0) |
● The RV08-P0 blocks flow from ① to ② until sufficient pressure at ① is applied to force the spring-opposed poppet from its seat.
● The RV08-P0 can be applied for hydraulic circuit with low internal leakage and fast response to load change.
*Note: Back pressure at ② will increase pilot pressure required at ① to shift, at a ratio of 1:1. The RV08-P0 may be used in cross-over relief applications (back pressure on ②) with the use of the “C” double back-up ring seal option.
Features: (Cartridge Relief Valve RV08-P0) |
● Fast and smooth response to pressure changes.
● Positive stops prevent springs from going solid.
● Compact size.
● Adjustments cannot be backed out of the valve.
● Industry common cavity.
● Hardened poppet and cage for long life.
